The AP3000PRO/PC is a complete PC and a big display in one flat package! Slim and stylish design with a huge, bright 30” screen make it possible to use in a variety of applications:
- Passenger information display systems (PIDS), airports, harbours, bus/train stations
- Advertisement display, with remote updates, live video
- Information display at building entrances, museums, art galleries, shopping centers
- Process control & automation, naval applications, military use
Integrated a modern PC system capable of playing video and other multimedia. Running most operating systems (Windows, Linux) and their applications. The AP3000PRO/PC can be networked for data transfers and updates – even wirelessly.
AP3000PRO/PC
| Housing |
Modern and stylish PU/steel housing, tempered glass on front |
| Display |
Bright 30” TFT with high contrast |
| Resolution |
Native 1280 x 768 (W-XGA), also VGA/SVGA/XGA full screen |
| Active area |
643 x 386 mm |
| Pixel pitch |
0.5025 x 0.5025 mm |
| Brightness |
450 cd/m² |
| Contrast |
350 |
| Viewing angles |
170º hor. / 170º ver. |
| Response time |
25 ms (suitable for live video) |
| Colors |
24 bit (16.7 M) |

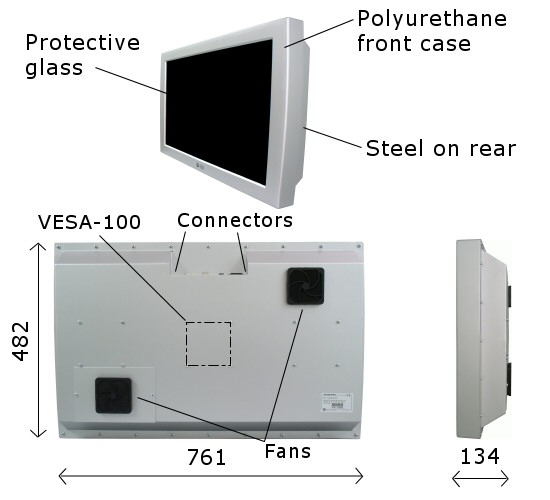

| Outline dimensions |
761 x 482 x 134 mm (W x H x D) |
| Weight |
24 kg (w/o stand) |
| Power |
~160 W (110/230 VAC) |
| Mounting |
VESA-100 fixing points |
| Connections |
On rear panel: power, RJ45, USB, RS-232 |
| Special options |
(click for details)
Membrane key mouse, /MEMBRANEMOUSE
DVI-connection (digital), /DVI
PC RGB and composite video input, /COMBO
1-100% brightness adjust, /A-INV
Temperature/humidity control, /THCONTROL
Protective safety glass, /SGLASS
Protective acryl shield, /ACRYL
Monitor stand
For improved housing protection, please contact us
/DVI model also compatible with AP Opto Link (enables cabling lenghts up to 500 meters)
|
Typical PC configuration:
|
- 1 GHz processor
- 256 MB of memory (DDR266)
- Integrated graphics chip with MPEG-2 acceleration
- 512 MB flash IDE drive (or 80 GB hard disk)
- 10/100 base-t Ethernet
- USB 2.0, PS/2, RS-232, Firewire
|
Options:
|
- WLAN, GPRS (edge) or DVB-T modules
- Remote measurement of temperature & humidity of the device enclosure
- Remote control of brightness, contrast, on/off switch and other picture adjustments
- Extended protection class of housing (splash water proof, vandal proof)
- Extended operating temperature
- Customized color & logo
Please contact us for more information and a quote.
|
| We can always manufacture a special version by customer requirements. Please contact us for details. |
Alpha Point Ltd. holds the right for technical changes with out prior notice
|
